Conveying and cooling equipments for an automated bottling line

Fully automated bottling line for maple syrup;

conveyors, transfers, single liner, cap sterilizer and cooler for hot filled bottles, air blower

motor and roller conveyors for boxes

line2
3D CAD Drawings

scale 1:1

accurate detailed drawings for easy and simple visualization

accurate measurements for in depth machine analysis

easy to modify any component

interference analysis


_Bun-Bottle line-02
Automated line - bottling zone

bottle conveyors

transfers

single liner

cap sterilizer

cooler

_Bun-Box line-05

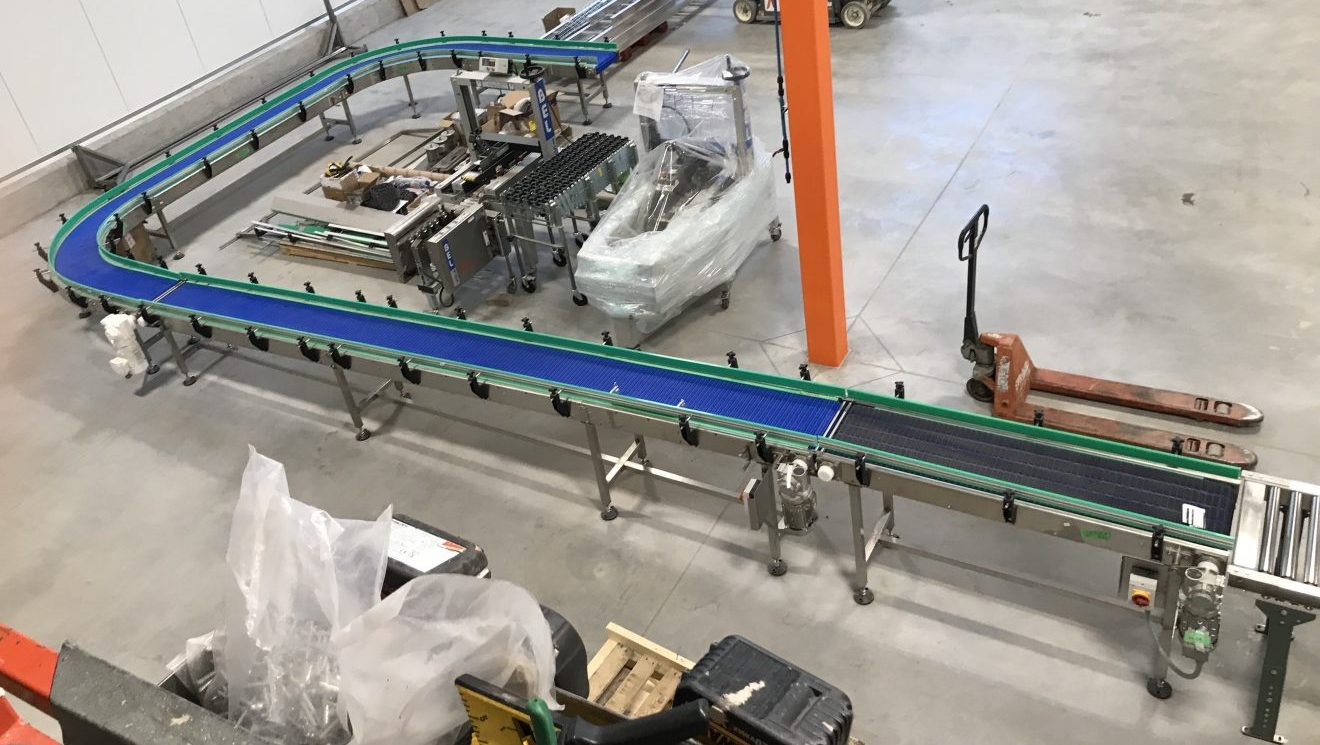

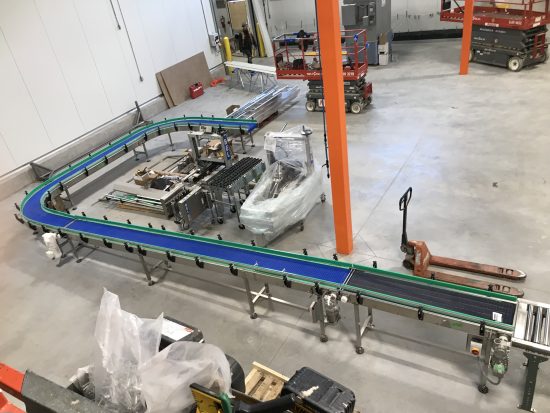

Automated line - cartboard box zone

low friction motor conveyor

high friction motor conveyor

roller conveyor



Conveying line for bottles

Bottle conveyors; One and two line input and one line output transfers;

Single liners; Cap sterilizer; Cooler; Air blower

_Bun-Bottle line-06

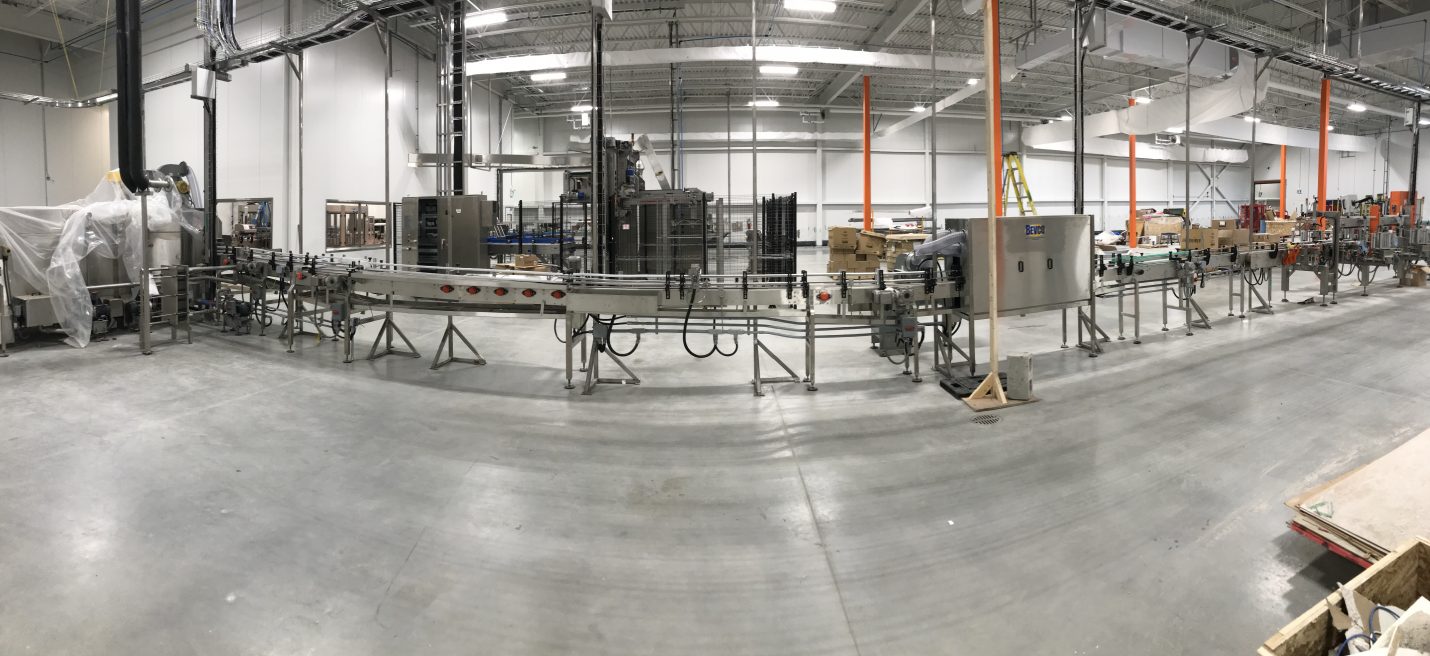

Conveing line for boxes

U conveyor; Inclined conveyor; High friction top conveyor; Roller conveyor

_Bun-Box line-05

Equipments

_Bun-M1b-T1

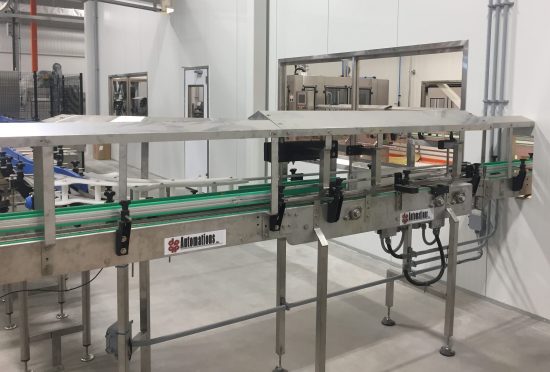

Bottle conveyor
IMG_0247-BIS

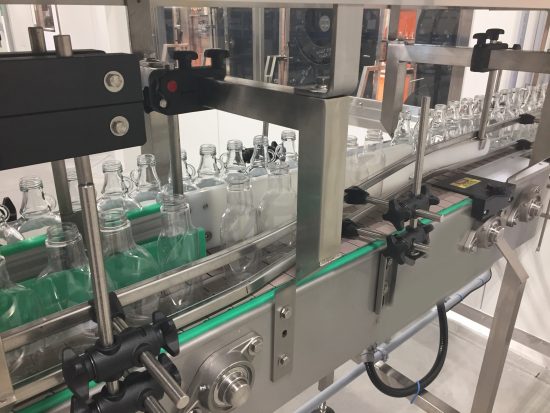

Triple transfer: 2 line IN & 1 line OUT
_Bun-box-line-04
27 ft U conveyor
_Bun-M3C

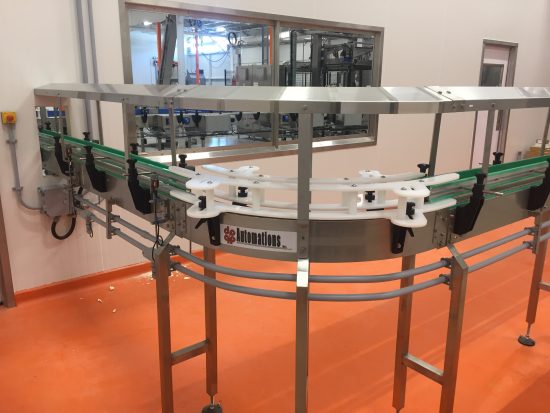

Curves with adjustable guides
IMG_0622
Roller conveyor
IMG_0484

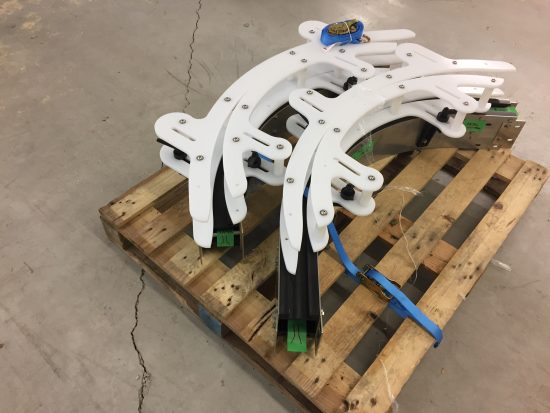

Guides for curves
_Bun-Conveyor transfer-01
Double transfer: 1 line IN & 1 line OUT
IMG_0675

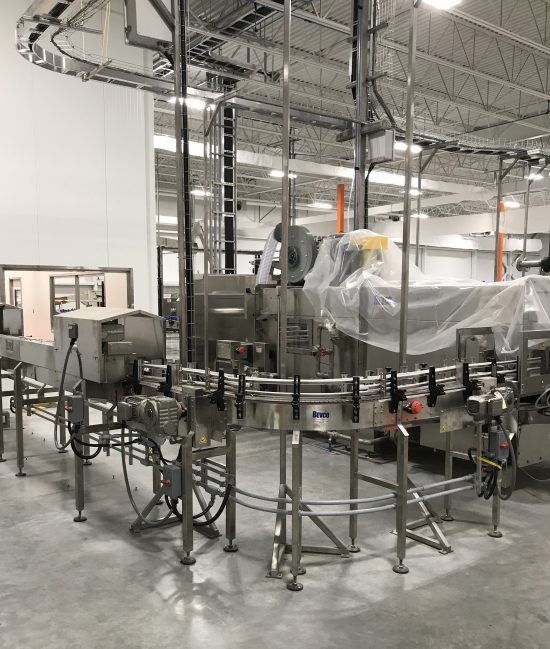

Cap Sterilizer & Cooler
Single
Single liner
